Stealth Cam Revolver 360 (Cellular) Review

Trailcampro Comprehensive Score:

In Progress



 Review

Stealth Cam Revolver 360 - TCP Staff

Model # STC-RVLR | Stealth Cam Revolver 360 Manual

 ALL TESTS DONE WITH A SINGLE ZONE

Trailcampro Comprehensive Score:



Picture Quality:                              In Progress

  36 Mpxl Photos (interpolated)  |  1080p Video Resolution

Battery Life: 6.3 Months (pics) | 3.3 Months (videos)

 Using 15 pics day + night  |  Using 15 vids day + night

Trigger Speed & Detection:                                                                                80/100

 Trigger & Recovery:  0.54 s.  -  34.4 s.  (Pictures)  |  0.94 s.  -  40.5 s.  (Videos)  |   80 ft. Range

Quality of Design:                                                                                                         85/100

  16 AA Batteries  |  12-volt External Battery Jack  |  No Internal Viewer


 Review

 Pros

  • Verizon & AT&T Network Coverage
  • Capability of using 360 degrees or 180 degrees
  • 6 Selectable zones
  • Photo/Video on demand
  • Time Lapse
  • GPS
  • Integrated T-Post Mount
  • Hunt Stand Compatible

 Cons

  • 3 thumbnails will be sent in video mode, then you download each video
  • Small motor sound when taking photos
  • The lens will always go back to zone 1 in instant mode before taking another photo





Be Wary Of Megapixel Ratings

Megapixel ratings for trail cameras seem to increase more & more every year. In reality, the native resolution of 99% of all trail cameras is 5 megapixels or less.  Manufacturers artificially inflate megapixel ratings for advertising purposes through a process called interpolation. Interpolated photos are enhanced by software to mimic the file size of a higher megapixel photo, but seldom offer additional clarity or resolution.  The result is an exponentially larger file size photo which takes longer to load and slows down the speed of your camera.  We always program our cameras to capture photos at the image sensor's native resolution. This allows our cameras to operate as efficiently as possible and store more photos to memory.  With shorter load times,  this also allows us to review photos at a much quicker pace.  To put things in perspective, the trail camera widely considered to be the "Gold Standard" and used by more professional researchers than any other unit is just 3 megapixels.



Picture Quality:  In Progress/100

Photo resolution:  36 mpxl (interpolated)

Video resolution: 1080p

Flash Type: No Glow Infrared

 We are placing cameras in the field and will post samples when we get them.







Battery Life:    80/100





Picture & Video Resting Power (on):  1.39 mW

Picture Daytime/Nighttime Power Consumption:  41.5 Ws  |  42.1 Ws

Video Daytime/Nighttime Power Consumption:  64.3 Ws  |  103.1 Ws

Here are your best battery options:

Trailcampro Choice: AmpTORRENT Rechargeable AA Lithium

If the Revolver 360 were to take 15-day and 15-night pictures every 24 hours, this camera would last 4.2 months in the field - per charge - on a set of AmpTorrent Rechargeable AA Lithium batteries.



There are a number of benefits to these batteries:

  • Up to 1,200 charges
  • Consistent 1.5 volt operation
  • Charges with the included USB cable
  • Eco-friendly (less batteries in a landfill)
  • Batteries pay for themselves after 2-3 charges

Longest Lasting Choice: Energizer Ultimate Lithium

If the Revolver 360 were to take 15-day and 15-night pictures every 24 hours, this camera would last 6.3 months in the field on a set of Energizer Ultimate Lithium batteries.

Video Mode

If this camera were to take 15 day and 15 night videos every 24 hours, it would last 3.3 months in the field on a set of Energizer Ultimate Lithium batteries.

Ultimate Lithium batteries are the longest-lasting battery choice due to their incredible consistency and capacity. We've loved these batteries for a long time. However, in recent years they have become cost prohibitive and forced us to seek out a more affordable, eco-friendly option.






Detection Circuit:     80/100



Picture Trigger & Recovery Speed:  0.54 s.  |  34.4 s.

Video Trigger & Recovery Speed:   0.94 s.  |  40.5 s.

Detection Range & Angle:  90 ft @ 49.2° detection angle (66.7° f.o.v.) (Single Zone)

 All data will also have +motor speed and various angles depending on the zones used.






Quality of Design:     85/100



Dimensions:  3.5" x 4" x 6.75"

Battery Type: 16 AA

External Battery Jack: 12-volt

SD Card Size: Up to 32 GB Up to



Case Design

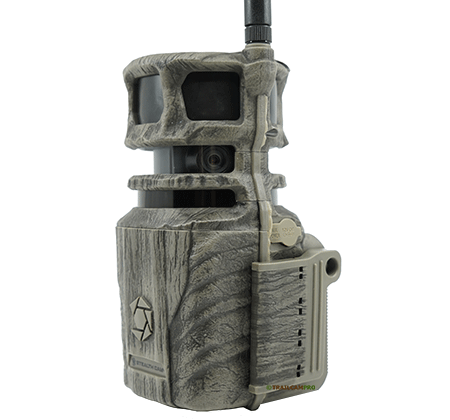

 The Revolver 360 is the first 360 degree cellular camera on the market. It is similar to the older 360 models, but a lot better case design. The unit is very sturdy as the 16 AA batteries hold the bottom down. This unit has 6 PIR sensors and any of them can be turned off. The lens will swing from zone to zone and has a little sound when moving. The door seals up very nicely and is easy to open and close. A bracket on the back allows a python cable to run through and a threaded insert is on the bottom. This unit will come with a t-post mount that can be put on the back of the camera. The two battery trays on the inside are easily accessible. As always, Stealth Cam has an easy setup with no internal screen.



 Camera Setup



  • Download the Stealth Cam Command app and create an account (or sign in)
  • Add device (hit + button). Access your QR code underneath the battery tray. Follow instructions to finish
  • Tap on your camera within the app and select "Camera Setup" to access settings.



Test your camera connect at any time by pressing the Sync button. This will take a test photo and instantly attempt to upload it. If your camera is successful you will see the photo appear in the app. Otherwise, one of the following LED codes will display:

  • Flashing green battery indicates checking camera hardware status
  • Solid green battery and flashing network indicates checking camera for internet connection
  • Solid green battery, Network and flashing account indicates checking camera for account
  • 3 Solid LEDs indicate account found and camera is successfully registered
  • All 3 LEDs will blink green to indicate photo upload in progress. LEDs will turn off to indicate camera is asleep and ready for deployment
  • Solid red battery indicates low battery or no sd card
  • Solid green battery and solid red network indicate no sim card, low signal, or no data plan
  • Solid green battery, network and solid red account indicates no account found



Data Plans



Monthly Plans

$5 - 600 photos (includes HD)

100 Video Previews

$8 - 1,200 photos (includes HD)

334 Video Previews



$20 - Unlimited photos (includes HD)

Unlimited Video Previews

10 HD Videos Per Month

Annual Plans

$48 - 600 photos (includes HD)

100 Video Previews

$72 - 1,200 photos (includes HD)

334 Video Previews

$120 - Unlimited photos (includes HD)

Unlimited Video Previews

10 HD Videos Per Month





Durability

The vast majority of consumer-grade trail cameras are inexpensive, imported devices exposed to harsh conditions 24/7/365.  Most manufacturers only offer a one-year warranty.  We stock only the most durable units and provide an additional year of warranty at no extra charge. The Trailcampro exclusive 2-year warranty allows you to deal directly with Trailcampro avoiding long wait times on hold with the manufacturer and prolonged periods without a replacement camera.  We turn around most warranties in just one business day!

 All test results are achieved through the use of proprietary equipment used exclusively by Trailcampro.  Any re-publication of this data without prior written consent is strictly prohibited by law. COPYRIGHT TRAILCAMPRO, L.L.C. 2024, ALL RIGHTS RESERVED.
